LawnMaster MX 24V 32cm Cordless Lawn Mower

The LawnMaster MX 24V 32cm Cordless Lawn Mower requires minimal assembly out of the box.

Assembling the Lower Handle

1. Insert the left and right lower handles into the slots of the mower housing. Ensure the locking

Assembling the Upper Handle

1. Fit the upper handle and lower handles together with the wing knobs on both sides of the
handle assembly.
2. Secure the cable against the handle frame with the supplied cable clips.
3. When the two wing knobs are loosened, the handle can be folded for easy storage. Ensure the
power cable is not caught between the folding sections.

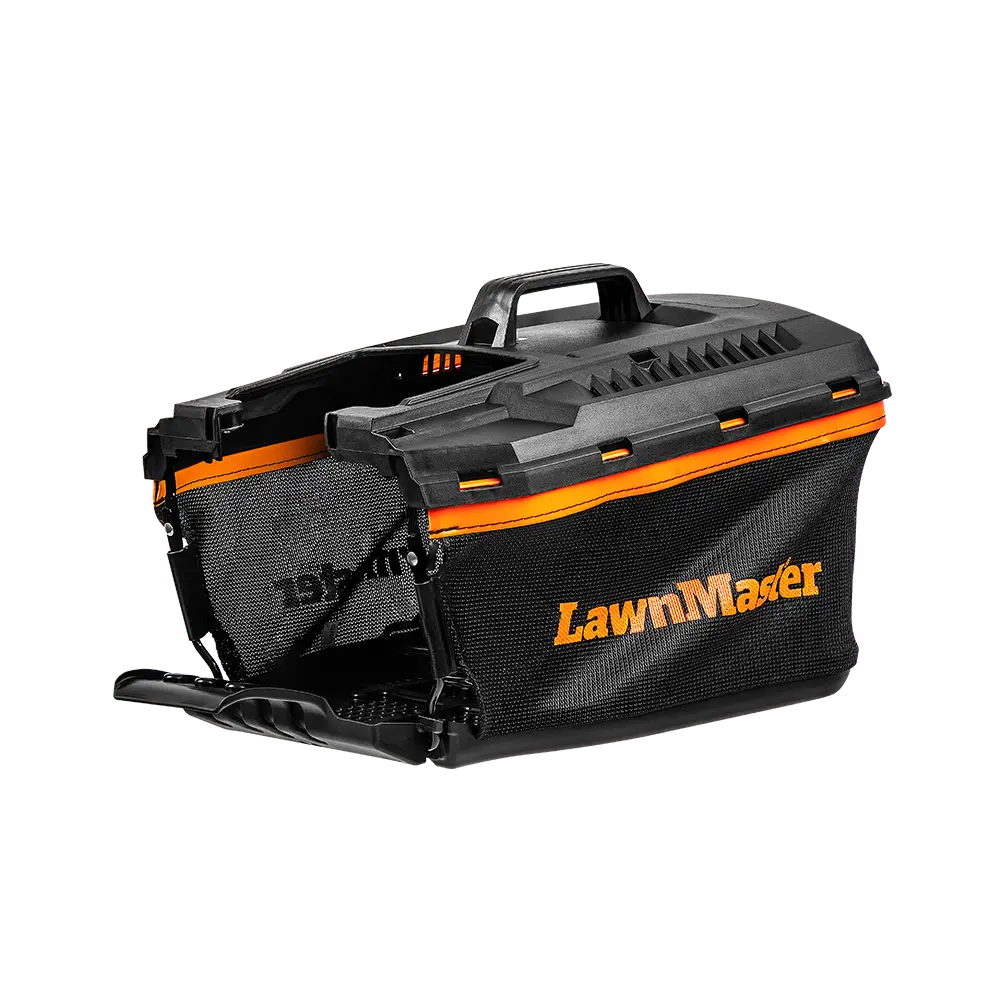

Assembling the Grass Collection Bag

Your mower comes with a tool free grass collection bag.
1. Insert the grass collection bag handle into the slots on the upper cover of grass collection bag.
Ensure this securely 'clicks’ into place.
2. Secure the metal support rods into the fixing position on either side of the grass collection base.

3. There is a hole in the bottom of the grass collection bag to hang it up if required.


Inserting the Battery Pack

1. Make sure the battery is fully charged.
2. Lift the battery compartment cover on the lawnmower deck.
3. Align the support rails located within the battery compartment with the guides in the battery
pack, and then insert the battery pack into the compartment.
4. Push the battery pack until you hear a “click”.

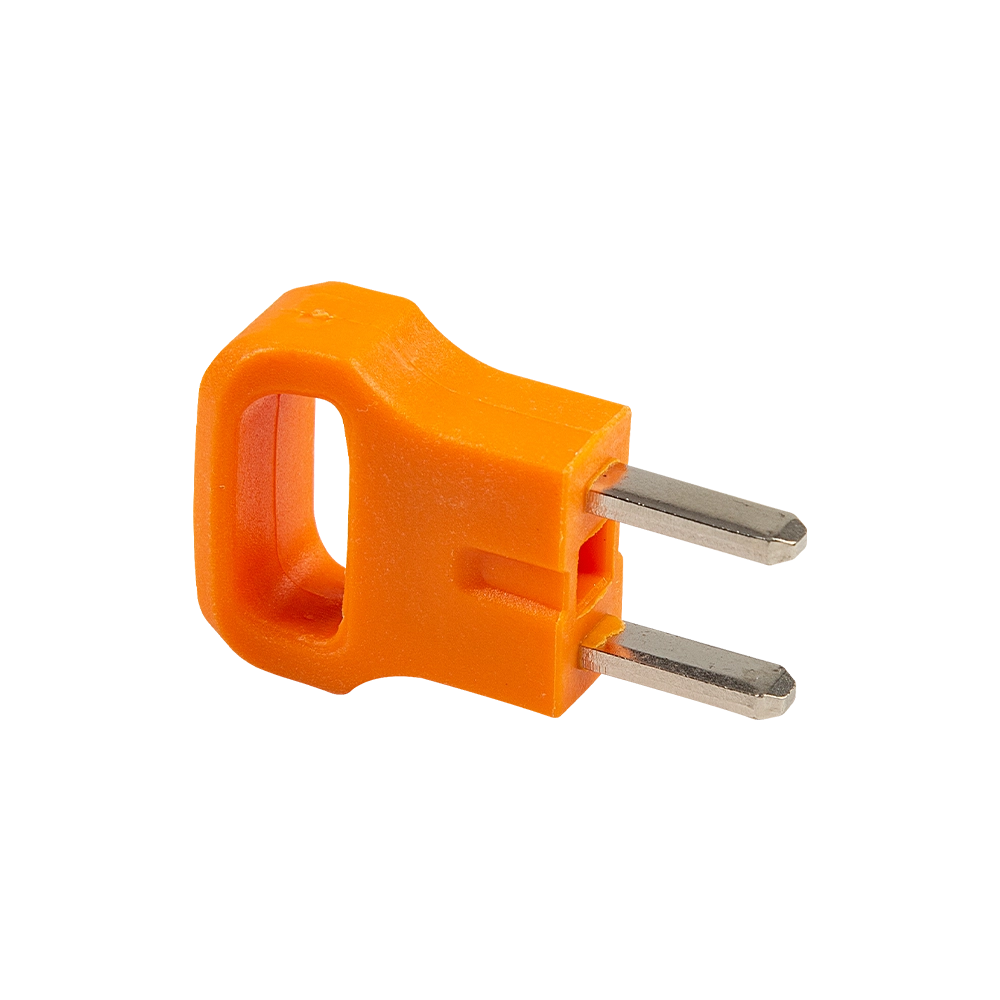

5. Insert the isolator key into the keyholes located within the battery compartment.
6. Close the battery compartment cover.

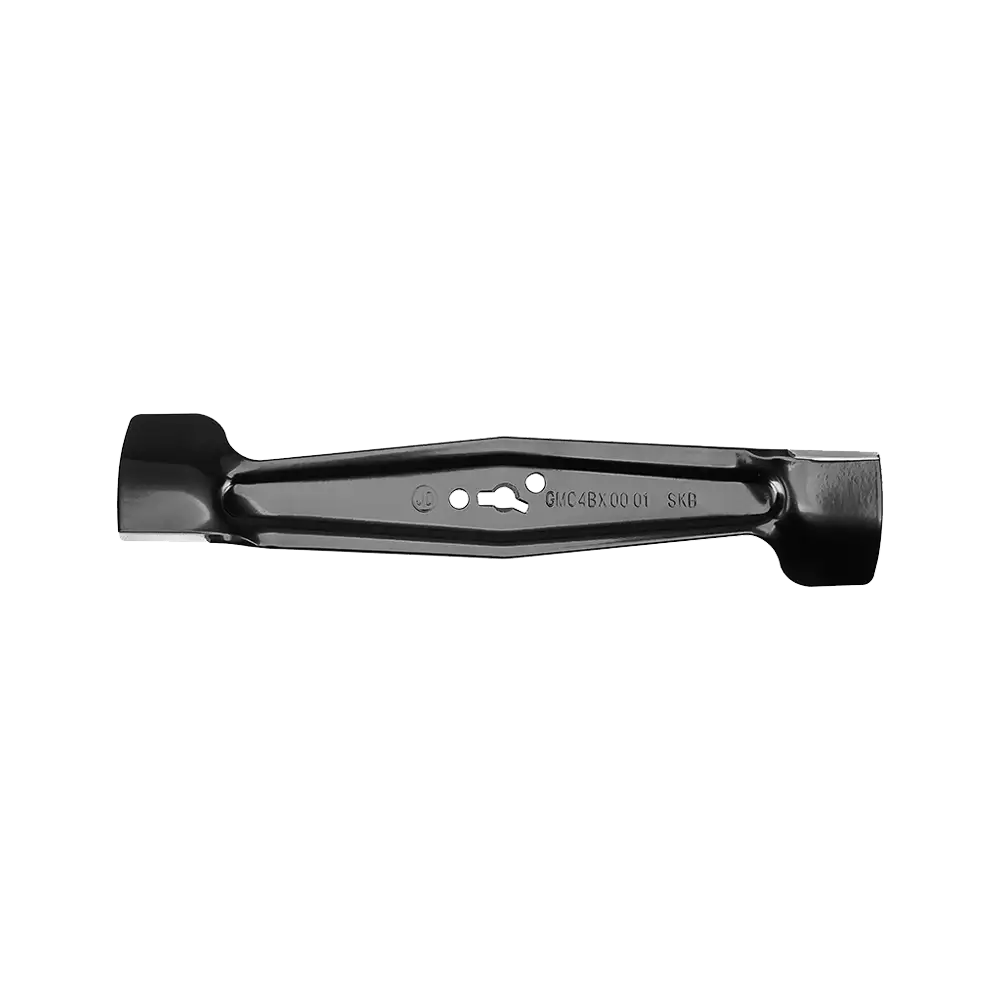

Lawnmower blades need to be regularly checked, cleaned and sharpened to preserve the cutting performance of your mower and encourage healthy grass growth. If the blade becomes damaged, we always recommend changing it. It's quick and easy to do.

Guide: When to change your lawn mower blade

Guide: How to maintain a cordless lawn mower

Follow this step by step video below to see how to change a change blade on a rotary lawn mower.
