1. Align the primary hose storage clip with the bracket as shown. Slide the hose storage clip downwards until it is secured into place.
2. Align the secondary hose storage clip with the bracket as shown. Slide the hose storage clip downwards until it is secured into place.
3. Attach the tough stain tool onto the end of the suction hose until it clicks into place. To remove: Press the tool release button and pull away.

NOTE: Wrap the suction hose into the hose storage clips when not in use.

4. Wrap the power cord loosely around the quick release cord hooks.

NOTE: Make sure to wrap the power cord around the lower cord hook first to avoid damaging the power cord.

Cleaning Exterior

1）Turn off and unplug carpet cleaner.
2）To clean exterior, or to reduce static electricity and dust build-up, wipe outer surface with a clean, damp and soft cloth. Wipe dry after cleaning.

Cleaning The Tough Stain Nozzle, it is recommended to clean the tough stain nozzle with water after each use.

1) Press the tool release button to remove the attachment from the suction hose.
2）Pry open the cover release tab on the nozzle to remove the cover.
3) Rinse thoroughly with clean water. Allow the parts to dry before reinstalling.
4) Reinstall the nozzle cover back into place until a click is heard.

Hose Cleaning Tool

1) Remove the clean water tank and fill with warm water (Max 40°C).
2) Attach the hose cleaning tool to the suction hose. Ensure any tools or attachments are removed.
3) Make sure both the clean water and dirty water tanks are secured on the unit.
4) Press the power button to turn the carpet cleaner on and hold the spray trigger for 30 seconds. The clean water will rush through the suction hose, effectively cleaning and removing any trapped dirt and debris in the hose which may build up over time. Repeat as needed. Let the machine run for 5-10 seconds before turning off.
5) Turn off and unplug carpet cleaner.

Cleaning The Filter Grill

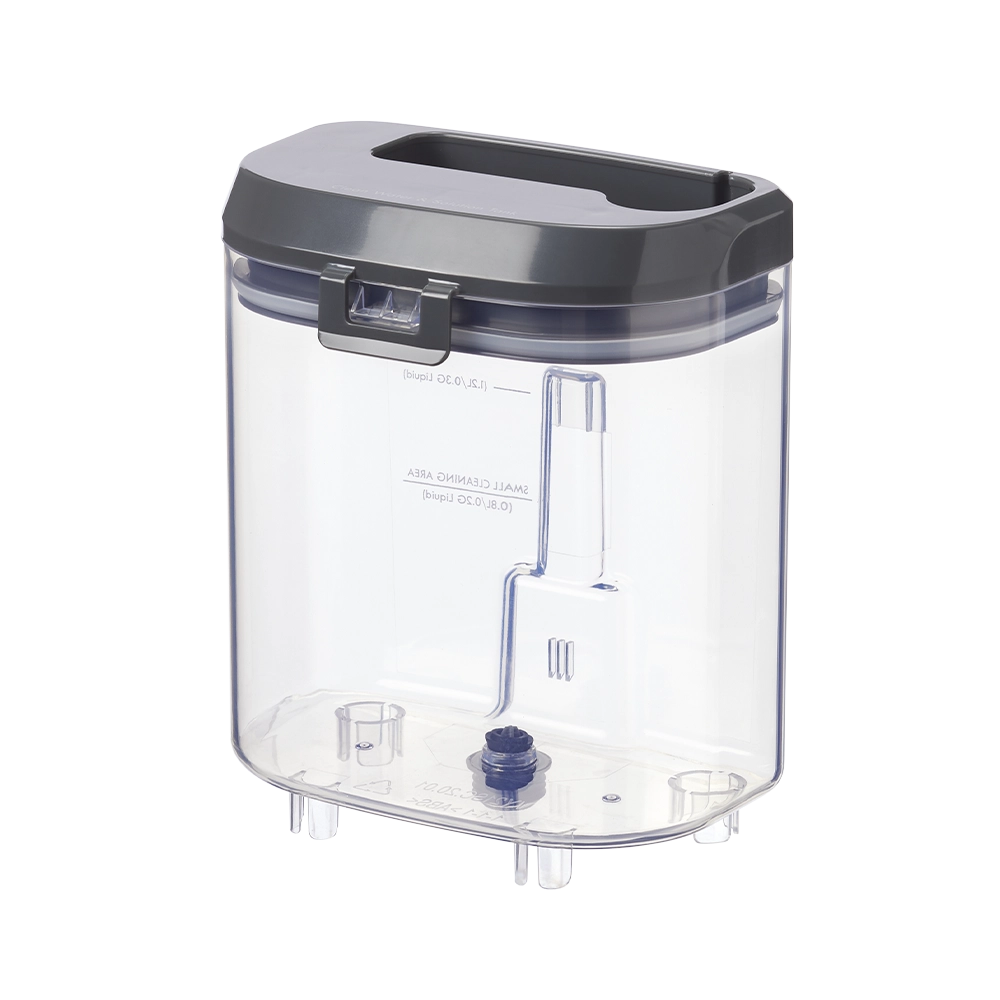

1) Remove the dirty water tank from the side of the unit.
2) Remove any dirt and debris from the filter grill.
